M900P

Categories: , Brand:

8 Intel® Pentium® N4200 Rugged Tablet PC

  • Intel® Pentium® N4200 Apollo Lake Processor
  • 8” 1280 x 800 IPS LED panel with direct optical connection
  • Projected capacitive multitouch (P-Cap)
  • Standard D-sub for vehicle gateway connection
  • USB 3.0 Type-A and USB 3.0 Type-C connectors
  • IP65 waterproof and dustproof

Quote upon request

Quote

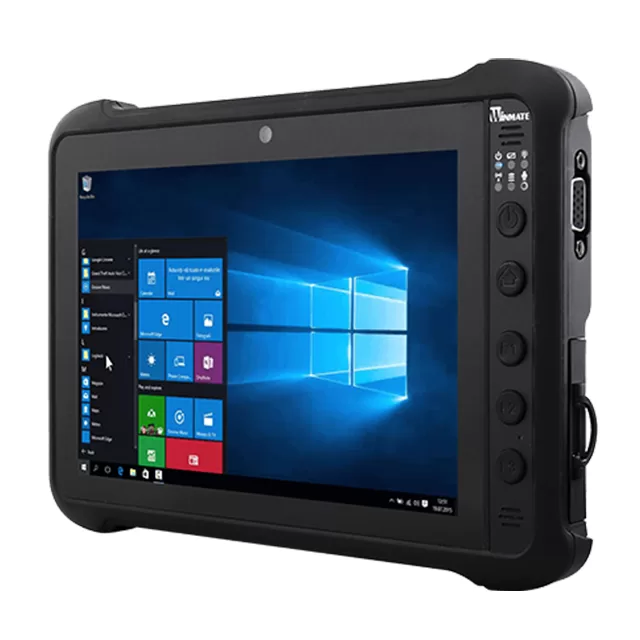

The M900 8-inch HD Touch Rugged Tablet is a compact and rugged Windows 10 Pro tablet with robust features designed to support industrial use, providing high-tech solutions that increase productivity, improve safety, and reduce operating costs. Processing power comes from Intel's Apollo Lake processor paired with Intel's original graphics for high performance. The tablet features a brilliant projective capacitive touchscreen, viewable outdoors, and offers a resolution of 1280 x 800 pixels. Weighing only 2.2 pounds (approx. 900 grams), the M900 offers lightweight mobility and Bluetooth Wi-Fi in a rugged tablet.

Tailor-made for mobile workforces, the M900P features a bright 8″ optically linked screen, a tablet-like net weight of less than 3g, 1280 x 800 resolution, and PCAP multi-touch to offer an easy-to-use multi-touch experience and outdoor visibility. It supports rain/stylus/glove modes, meaning the touchscreen remains responsive in all conditions.

The rugged M900P tablet survives harsh environments thanks to its solid MIL-STD-810G certified and IP65 rated casing. It features a USB connection with a keyboard and mouse. Its wide operating temperature range ensures reliable operation under extreme conditions.

Technical Specifications

PDF Download

Technical Specifications


Resolution 1280 x 800
Contrast Relationship 800: 1
Size 8 inches
Panel brightness 510 nits
Viewing Angles 85,85,85,85
Type Multi-Touch Capacitive Design
Touch Mode Hand support / gloves and rain mode gluing
Processor Intel Pentium N4200 1.10 GHz,
up to 2.50 GHz with turbo boost technology.
Memory 4GB LPDDR4
8GB LPDDR4 (Optional)
Storage 64 GB SSD.
Additional storage available with micro SDXC card slot.
Smart Card Reader Protocol ISO7816-1.2.3 T=1 and T=Ø
Security Trusted Platform Module (TPM) 2.0
Operating System Windows 10 IoT Enterprise (64-bit)
WLAN Support
WWAN 4G LTE (optional)
RFID Mutually Exclusive with Barcode Reader
HF 13.56 MHz RFID Reader (Optional)
LF 125 KHz RFID Reader (Optional)
Sensors Light sensor / g-sensor / gyroscope
Front Camera 2MP
Rear Camera 8MP rear camera with autofocus and LED light
Dimension 225 x 148 x 20.5 mm (10 x 7.76 x 0.8 inches)
Weight 0.9 kg with battery
Cooling System Fanless design
USB port 2 x USB 3.0, 2 x USB 2.0, 1 x USB 3.0 (Type C)
LAN 1 x RJ45-10/100/1000Mbps LAN
Audio 1 x 3.5mm audio combo jack,
dual digital microphone with noise cancellation
, dual speaker.
SD card slot 1 x micro SDXC slot
SIM card slot 1 SIM card slot
Indicator 4x LED indicators for power status, battery, SSD, RF
Snap-fit ​​connector 1 x 19-pin plug-in connector
Operating Humidity 10% to 90% RH, without condensation
Operating Temperature –20°C to 60°C (AC mode), -10°C to 50°C (battery mode)
Storage temperature -30°C to 70°C (-22°F to 158°F)
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
To tear down MIL-STD-810G Method 516.6, 5 feet
Type Multi-Touch Capacitive Design
IP Rating IP65 certified, dustproof and waterproof
Certification CE, FCC, E-Mark
SOTI MobiControl SOTI MobiControl Compliance
Button 1 x power, 1 x menu, 2 x volume keys,
3 x programmable function keys
Battery 7.6 V, typ. 4200 mAh lithium polymer battery (2S2P)
Battery Operating Time Standard. Battery: 8 hours
Power 19V DC, 3.42A
Adapter 100-240V, 50-60Hz / 19V DC
Accessory Adapter and power cord
Vehicle charger
Standard battery
Optional Accessory Shoulder strap (optional)
Battery charger (optional)
Vehicle charger (optional)
Docking desk (optional)
Barcode reader 1D/2D barcode reader (optional)
